- EZ-T High Viscosity 5 Gallon (18L) Per Minute Heated Transfer System for Heated Gels, Viscous Molten Fluids and Even Unheated Lotions, Creams & Soaps- "The Super-Charged High-Viscosity Valve!"
- Connects directly to any existing melting tank valve
- Stainless Steel fittings
- Specially Designed Heated Ball Valve Spout
- Features high impact bronze ball valve with full metal parts and handle to be impact resistant.
- Safe, easily programmable, temperature controlled heating.
- Control Box/Pump
- Enclosure: High-impact and corrosion resistant 304 grade stainless steel construction which is heat, impact, chemical, and moisture resistant. Built in reset breaker/fuse, safety features and self-regulating heating ensure safety and long use.
- Digital Temperature Controller: Easy to read and use 4-digit 7-Segment LED to provide accurate, precise heating from -0° to 212° F/ 100 ° C, with On/Off status, easy fingertip-touch pad which has lockable feature and allows easy set up and adjustment of control set-point, differential, and other functions.
- Thermo Pump & Motor: Industrial motor with Bronze iron pump with heated, insulated steel casing and rated for continuous use.
- Thermo Hose: Stainless Steel Braided TeflonŽ hose tubing is light, flexible and durable for safe, even heat transfer, faster transfer speeds and longer term use without contamination or wear. Super energy efficient and rated for a maximum digitally controlled temperature of 400° F (204°C), but with a limiter setting to keep it at a maximum of 212° F (100°C) degrees so there is extra insulation, protection and extended life.
- Electrical Specifications:
- 600W
- 5amps at 120v; 3amps at 240v
- 120v or 240v (with Adapter Option)
Connects directly to any existing melting tank with 1" valve. If require a different size, please let us know and we will provide fitting.

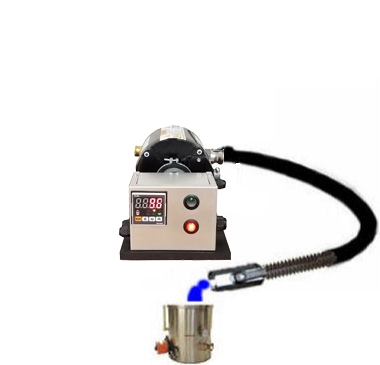

Melter Not Included. Photo is illustrative of the set-up.
Melter Sold Separately.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- "The Super-Charged High-Viscosity Valve!" Imagine being able to quickly, efficiently and easily transfer thick materials.Transfers Up To 5 Gallon (18L) Per Minute
- Perfect Solution For Transferring Heated Gels, Viscous Molten Fluids and Even Unheated Lotions, Creams & Soaps, From Large Melters To Small Melters & Containers Easier Than Ever.
- Specifically Designed To Make Transferring Heated soaps From Large Melters To Small Melters & Containers Easier Than Ever.
- Makes transferring soap so easy: Speeds up to 30gpm and hoses up to 50 feet long available.
- Digitally controlled and heated pump and hose keep your solutions heated and fluid during filling.
- Sleek, ergonomic profile, yet industrial for commercial 24/7 production schedules.
- Heated, flexible Stainless steel braided 8' Teflon cored hose provides plenty of range and mobility for filling.
- Cleaning is a cinch and virtually waste free since unit almost automatically cleans itself with the proprietary combination of internal components designed to withstand dyes and fragrances and being fully heated.
- Connects directly to any existing melting tank with 1" valve. If require a different size, please let us know and we will provide fitting.
|
|
|
|
|
|
|
