- "Just Set It... Forget It" Technology- No Triggers or Buttons To Press!

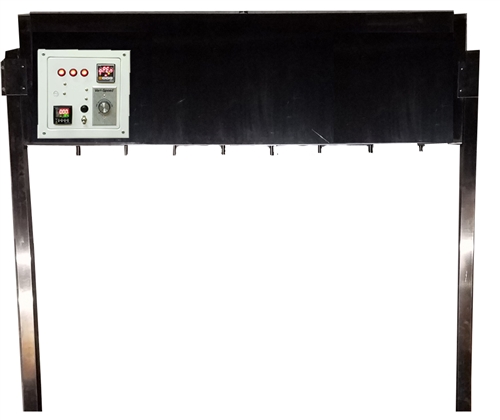

- OCTO 8 Valved Automated, Unheated Liquid Soap Pouring System
- Precisely Measured, Automated "On" & "Off" Hand Sanitizer Dispensing
- Ideal for controlled, fast, heated filling of .02oz (6ml) to 20oz (590ml) containers
- Connects directly to any existing tank valve
- Stainless Steel fittings
- Unheated OCTO Head
- Enclosure: Features 304 grade stainless steel head which is heat, impact, chemical, and moisture resistant, while offering structural stability.
- Digital Filling Controller: Advanced microchip technology with multiple color display, easily adjustable keys and 4 different functions, including switch-on impulse and cycling settings for ON and OFF cycles. Features a NEMA4X (IP66 equivalent) is sealed against the ingress dust, water and foreign materials. Also features a low profile fascia so less prominent keys in the front of the panel and so less likely to become dirty.
- 8 Valves: Stainless steel UL-Listed heated valve is NEMA 4 Protection Class (rated for outdoor use) with 1/4" valve with VitonŽ seals insure extended life.
- Pump
- Enclosure: High-impact and corrosion resistant 304 grade stainless steel construction which is heat, impact, chemical, and moisture resistant. Built in reset breaker/fuse, safety features and self-regulating heating ensure safety and long use.
- Pump Colossus is stainless steel with stainless steel casing has 1" output and is rated at a maximum of 28 gallons per minute.
- Unheated Hose: Stainless Steel Braided TeflonŽ hose tubing is light, flexible and durable for safe, faster transfer speeds and longer term use without contamination or wear.
- Boom Support Frame: 72" High 2"x 2" Solid 304 grade Stainless Steel tubing with squared welded base for safe mounting.
- Electrical Specifications:
- 800W
- 7amps at 120v; 4amps at 240v
- 120v or 240v (with Adapter Option)
Connects directly to any existing melting tank with 1" valve. If require a different size, please let us know and we will provide fitting.

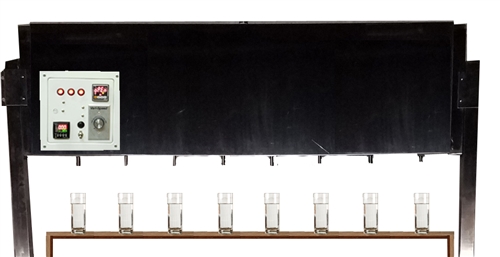

Melter Not Included. Photo is illustrative of the set-up.
Melter Sold Separately.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Precisely Measured, Identical & Unheated Liquid Soap Pouring for 0.2oz (6ml) to 20oz (590ml) Containers.
- Pour from 1 to 8 Containers at a time with Individualized Controls.
- The remarkable microchip processor ensures automated, mistake free, quick and uniform dispensing and filling with perfect quality control.
- Simple, one person operation increases production while reducing mistakes and improving quality and uniformity.
- Connects directly to any existing tank with 1" valve. If require a different size, please let us know and we will provide fitting.
|
|
|
|
|
|
|
